E-Thru Trainer axle Classic trainers

With the E-Thru axle skewer you use an axle skewer to put your mountain bike in the Tacx trainer. These axles are only suitable for the Tacx classic trainers. Separate axles are available for direct drive trainers, and replace the standard axle skewer.

Available Axles

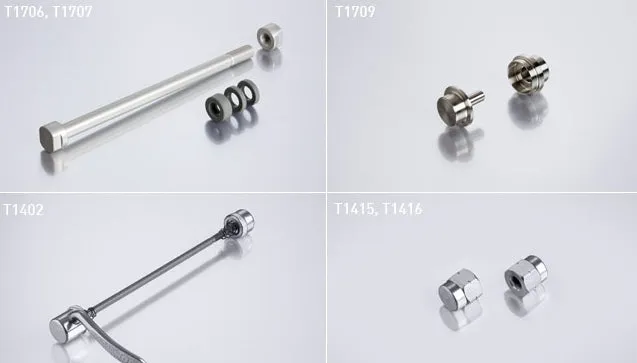

T1706 E-Thru trainer axle M10x1, with metric fine thread.
Suitable for hubs with axle skewer attachment 135×10 mm: various Swiss and Shimano types.

T1707 E-Thru trainer axle M12x1, with metric fine thread.
Suitable for hubs with axle skewer attachment 142×12 mm: various DT Swiss and Shimano types.

T1708 E-Thru trainer axle M12x1.75, with standard threaded cartridge.
Suitable for hubs with a Maxle axle skewer attachment 135×12, 142×12, 150×12 mm and Trek ABP 142×12.

T1709 E-Thru adapter X-12 (>142 mm).
Suitable for hubs with axle skewer 142×12 mm.

T1710 E-Thru trainer axle M12x1.5, with medium thread.
Suitable for hubs with axle skewer attachment 142×12 including Shimano SM-AX65, SM-AX75, SM-AX76 and SM-AX78.

T1711 E-Thru trainer axle M12x1, with metric fine thread.
Suitable for hubs with axle skewer attachment 142×12 mm: DT Swiss RWS axle skewer (conical and flat), Syntace X-12 system (Specialized) and various Shimano types.

**Please see attached resource below for Axle Dimensions**
